Evaluation of the antibacterial activity of the seed hull
of Quercus brantii on some gram negative bacteria

Azar D. Khosravi1, Atoosa Behzadi2


Objective: Due to rapid increase of antibiotic resistance especially among gram negative bacteria that cause diarrheal diseases, the role of methanol extract of oak seed hull (Quercus brantii) was evaluated on few gram negative entric bacilli and compared with some in-use antibiotics.

Duration and place of study: Nine months from October 2001 to July 2002 at the schools of Medicine & pharmacy, Ahwaz Jondi Shapour University of Medical Sciences, Ahwaz, Iran

Metrials & Methods: Cold maceration with 70% methanol was used for extraction of seed hulls and different concentrations were prepared from the concentrated extract. The antimicrobial activity of the extract was examined using the standard MIC and disc diffution method on E. coli, Salmonella typhimurium, Shigella flexneri and Proteus mirabilis and the activity was compared with those of gentamycin, nalidixic acid and co-trimoxazole in the next step.

Results: The antibacterial effect of the methanol extract on P. mirabilis and E. coli was significant and was directly concentration- related but had no significant effect on S. flexneri. Some concentrations had a similar or even better effect compared with nalidixic acid or co-trimoxazole, while the effect of 80% extract was not significant in general, except for S. typhimurium where its effect was equivalent to that of 25µg co-trimoxazole.

Conclusions: Although oak seed hull has some antibacterial activity apparently its anti-diarrheal effect is due to water absorption and protein precipitation in the body.

KEY WORDS: Seed hull, Antibacterial activity, Quercus brantii, Salmonella, Shigella, E. coli.

Pak J Med Sci October - December 2006 Vol. 22 No. 4 429-432

1. Dr. Azar D. Khosravi,
Department of Microbiology,
School of Medicine& Infectious and
Tropical Diseases Research Center.

2. Dr. Atoosa Behzadi,
School of Pharmacy.

1-2: Ahwaz Jondi Shapour University of Medical Sciences,
Ahwaz, IRAN.

Dr. Azar D. Khosravi

* Received for Publication: December 6, 2005

* Accepted: June 20, 2006


Infectious diseases account for about half of the deaths in tropical countries.1 Progress in antimicrobial drugs, has introduced many antibiotics most of which are nontoxic, though all have side effects.2,3 Besides, incidents of epidemics due to drug resistant microorganisms pose enormous public health concerns.4-6 So despite significant value of antibiotics, the increase of bacterial resistance has restricted their clinical application.7-9

Historically, plants have provided a good source of anti-infective agents and many of them remain highly effective in the fight against microbial infections. Besides, they are cost- effective and have fewer side effects.10,11

Oak plant is a predominant genus in northern and central Iran and comprises many species. Quercus which grows in the central forest area of the country is one of the most important oak genera with 45 species; the predominant species being Quercus brantii.12 The seed hulls of the plant have been used as anti-diarrheal in traditional medicine.13 Tannin is one of the major components of Q. brantii with contractive and disinfective effects.13 The aim of the present study was to investigate the antimicrobial property of seed hull of the plant and compare its effects with some in-use antibiotics.


Extraction of oak seed hull: The fruit of the plant was collected from the Bakhtiari area (central Iran) during October to November 2001, washed and dried in air and seed hulls separated and macerated in 400 ml methanol (70% v/v) for 3 days.14 The mixture was then filtered and concentrated at 37oC.

Preparation of discs containing extracts: Different concentrations of 224, 168, 84 and 2.8 mg/ml (80, 60, 30 and 1% respectively) were prepared from the methanol extract. The concentrations were incorporated into sterile blank paper discs (Padtan Teb Inc., Tehran, Iran) and were dried at 37oC. The paper discs were weighed carefully for confirming exact amount of the extract being incorporated (compared to pre-weighed blank discs).

Preparation of bacterial suspensions: Escherichia coli, Salmonella typhimurium, Shigella flexneri and Proteus mirabilis which were isolated from stool specimens in the clinic were identified according to routine cultural properties and biochemical tests.15 Five strains of each were included in the study. A few colonies from the overnight culture of Eosin Methylene Blue (EMB) agar were transferred into approximately 4-5ml Tripticase soy broth (TSB) medium. The broth was incubated at 37oC for 3-4 hours and the turbidity of suspension was adjusted to that of a 0.5 McFarland barium sulfate standard. The standard suspension was used for both qualitative and quantitative antimicrobial assays. Merck Germany culture media was used in this study.

Susceptibility testing: The Agar disc diffusion test and tube dilution test for investigation of Minimal Inhibitory Concentration (MIC) and Minimal Bactericidal Concentration (MBC) were carried out according to the method of Bauer and Kirby under strict adherence to NCCLS criteria.16,17 Briefly, in disc diffusion method, Muller Hinton (MH) agar medium was inoculated with standard bacterial suspension and discs with different concentrations of the extract were placed in appropriate positions in the plate. The plate was incubated at 37C for 24 hours; the inhibition zones of bacterial growth around the discs were measured and recorded. A similar qualitative assay was used to determine the susceptibility patterns of selected in-use antibiotics i.e. Gentamicin, Nalidixic acid and Co-trimoxazole and the results of both were compared.

In the tube dilution assay, standard bacterial suspension was added to tubes containing 1ml broth and concentration of the extracts. The tubes were incubated at 37oC for 24 hours. The first tube in the series with no sign of visible growth was reported as the MIC. By culturing the tube on MH medium and subsequent incubation, no growth was assumed as the MBC of the extract.

All the tests were repeated 3 times for precise results and all the three repeat results showed no significant differences. SPSS soft ware and T test were used for data interpretation included calculation of the mean values, standard deviation and investigation of significant differences in results.


In tube dilution method for determining MIC and MBC, the 80, 60 and 30% dilutions were excluded from the study because of formation of milky precipitation with the culture media, and 1% dilution showed only bacteriostatic effect on all tested bacterial strains with no bactericidal activity.

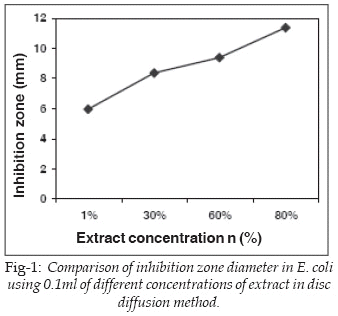

The results of disc diffusion method showed that the 80% concentration of the extract had significant effects on E. coli and P. mirabilis (P<0.05 and P<0.01 respectively) but it was not seen with 30 and 60% extracts (Fig-1). The inhibitory effect of 60% and 80% concentrations of the extract was significant for S. typhimurium (P<0.01). None of the concentrations of the extract had significant effect on Sh. flexneri.

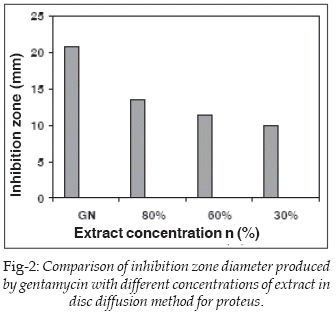

Antibiotic susceptibility testing for gentamicin, nalidixic acid and co-trimaxazole showed high resistance of test bacteria compared to the standard strain which were sensitive to the drugs with P. mirabilis the effect of gentamicin compared to 80, 60 and 30% extracts was significant (Fig-2). In S. typhimurium the inhibition zone for gentamycin compared to 80% concentration of the extract was significant. The inhibition zone for gentamicin and co-trimoxazole compared with 60% and 30% extracts were also significant (Fig-3). None of the antibiotics were effective against Sh. flexneri or E. coli.


Antibacterial resistance especially among gram-negative bacteria is an important issue that has created a number of problems in treatment of infectious diseases and necessitates the search for alternative drugs or natural anti-bacterials.4

The present study indicated that the effect of the Oak seed extract on E. coli and P. mirabilis was concentration-dependent but not for Sh. flexneri or S. typhimurium. Since the condition of evaluation for extract effectiveness was similar for all the bacteria used, the difference in bacterial response was possible due to the nature of the latter bacterial species.

Despite previous reports on other properties of the oak seed hull,12 our study was the first one on the antimicrobial effect of the plant in this geographical region. However, there are numerous reports regarding antimicrobial effects of other plants in general, most of which involved the Labiatae family. Panizze and his colleagues (1993) investigated the effect of essential oil of four plants belonging to Labiatae family on some gram-negative bacteria including those used in this study. Their findings were similar to our results from antibacterial point of view.18 Larrondo and his colleagues in a similar survey using Labiatae plants concluded that the plants under investigation showed anti-bacterial and anti-fungal activities.19

The bacteria showed unexpected resistance to tested antibiotics which indicates the failure of current chemotherapy against such bacterial infections requiring more effective antibiotics such as third generation cephalosporins.20

Some concentrations of the extract were found to have a similar or even better effect compared with tested antibiotics. Based on previous studies on active constituents of oak seed hull,12 Tannin is the most abundant compound in the plant whose major effect is anti-diarrheal because of water absorption and protein precipitation.21 The present study showed that it has some antibacterial activity as well. This was an in vitro investigation without interfering the body physical factors (such as gastrointestinal movements) and chemical effects (stomach enzymes and acid, mucous, etc.), however the response in the body might be quite different due to intervention of these natural factors. Further studies are needed for the clarification of the precise in vitro and in vivo antimicrobial activities of the plant extracts.


1. Abghari SH, Baghaei R, Hendi A. Harrison’s principles of internal medicine, bacterial infections (translation), Ayandehsazan Publications, Tehran, 1984: 11-3.

2. Osler W. Chemotherapy. In: Thomas CG. Medical Microbiology. 5th ed. Baillier Tindall, London, 1983; pp. 192.

3. Shafiei A, Ghanbarpour A. Fundamentals of antibiotics (translation), University of Tehran Publications, Tehran 1992; pp.5-6.

4. Jensen G, Wandall DA, Gaarsler K. Antibiotic resistance in Shigella and Salmonella in rigion of Lithunia. Eur J Clin Microbiol Infect Dis 1996; 15: 872-6.

5. Aseffa A, Gedlu E, Asmelash T. Antibiotic resistance of prevalent Salmoella and Shigella strains in Northwest Ethiopia. East Afr Med J 1997; 74:708-13.

6. Guyoi A. Antibiotic resistance of Shigella in Monrovia Trop Doct 1996; 26: 70-1.

7. Yurdakok K, Sahin N, Ozmert E. Shigella gasteroenteritis. Acta Paediatr Jpn 1997; 39:681-3.

8. Niekel LG. Antimicrobial activity of vascular plants. Econ Bot 1993; 13: 225.

9. Neu HC. The crisis of antibiotic resistance. Science 1992; 257: 1061-9.

10. Samsam SH, Moatar F. Natural medicines and plants. Mashal Publications, Tehran 1991; pp.123-30.

11. Reminton S. Pharmaceutical Sciences. 17th ed. Mack Publishing Co., Eastan, 1991.

12. Zargari A. Pharmaceutical plants. 2nd ed. Amir Kabir Publications, Tehran 1988; pp. 563-5.

13. Amin GH. Traditional pharmaceutical plants of Iran. Iranian Ministry of Health & Medical Education Publications, Tehran, 1991; pp. 8-10.

14. Samsam SH. Extraction and purification of effective constituents of pharmaceutical plants. Mani Publications, Tehran, 1992; pp. 3-13.

15. Fores BA, Sahm DF, Weissfeld AS. Diagnostic Microbiology. 11th ed. St. Louis: C.V. Mosby Co., 2002; pp.365-75.

16. Bauer AW, Kirby WM, Sherris JC. Antibiotic susceptibility testing by a standardized single disk method. Am J Clin Pathol 1999; 45: 493-6.

17. National Committee for Clinical Laboratory Standards: Performance standards for antimicrobial susceptibility tests. 5th ed. NCCLS document M2-A5. Villanova/Pa: NCCLS. 1993.

18. Panizzi L, Flamini G, Coini P. Composition and antimicrobial properties of essential oils of four Mediterranean lamiaceae. J Ethnopharmacol 1993; 39:167-70.

19. Larrondo JV, Agut M, Calvo TM. Antimicrobial activity of essence from labiates. Microbios 1995; 82:171-2.

20. Gross U, Tsehape H, Bednarek I. Antibiotic resistance in Salmonella enterica serotype typhimurium. Eur J Clin Microbiol Infect Dis 1998; 17: 385-7.

21. Azad Bakht M. Classification of Pharmacological plants. Nashr Pulications, Tehran, 1999: 61-3.
